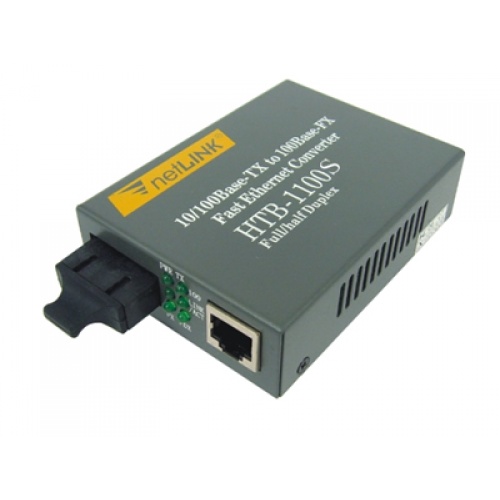

NetLink HTB-1100S Optical Media Converter Singlemode Duplex Fiber SC port Converter 25KM
$26.00
Feature
- Auto negotiation function allows UTP port to select the transmission mode of 10/100M and Full Duplex or Half Duplex.
- UTP port supports MDI/MDI-X auto crossover.
- Multiple optical interface to be chosen: SC,ST or FC,singlemode/multimode
- Supporting 1552 Byte packet
- Internal circuit of prevented thunder could greatly reduce damage of the converter caused by thunderbolt induction.
- Design of internal or external power supply for selection by users
Specification
- Operating standards: IEEE802.3u, 10/100Base-TX and 100Base-FX
- MAC address table: 1K
- Connector:
- UTP: RJ-45 10/100Mbps;
- Fiber: ST/SC/FC 100Mbps
- Cable:
- UTP: Cat. 5 UTP (the max distance up to 100m)
- Fiber (Multimode): 50/125, 62.5/125μm(the max distance up to 2km or 5km)
- Fiber (Singlemode): 8.3/125, 8.7/125, 9/125, 10/125μm(the max distance up to 20 -120km)
- Flow Control
- Full Duplex: Supporting standard IEEE802.3x
- Half Duplex: Backpressure
- LED: Power, FX FDX, FX Link/Act, TX 100, TX FDX, TX Link/Act.
- Power: AC 110V-240V to DC 5V; DC 48V to DC 5V.
- Ambient Temperature: 0 ℃ ~70 ℃
- Humidity: 5% ~ 90%
- Dimensions:
- Internal power: 30x110x140mm
- External power: 26x70x93mm
- Model: HTB-1100S
